Description

  • TS-1 oil cooled turbochargers
  • TS-2 oil and water cooled turbochargers
  • V-Band, various T3 Flange and T4 Flange options
  • Reverse rotation (Selected Sizes)
  • Various A/R options
  • Internal and external wastegated options available

Specifications

  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal A/R’s and flow
  • T14 Inconel turbine wheel for extreme EGT's
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing
  • Compressor Inlet: 4? / 101.6mm
  • Compressor Inducer: 58mm
  • Turbine Inlet: T3
  • Turbine Exducer: 62mm
  • Turbine AR: 0.63
  • Turbine Outlet: V-Band (3.00?)
  • Weight: 6.06kg / 13.3lbs
  • Horsepower Rating: 600-750HP

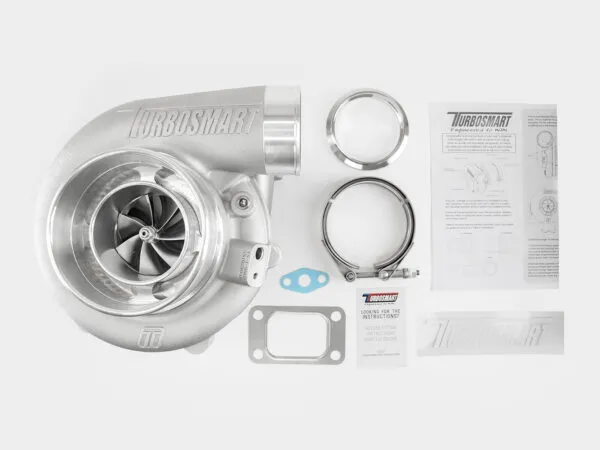

What's Included

  • 1 x Turbosmart Performance Turbocharger
  • 1 x Weld Flanges (Turbine outlet)
  • 1 x V-Band Clamps (Turbine outlet)
  • 1 x Oil drain gasket

Compatibility

  • Universal Part
  • TS-1 oil cooled turbochargers
  • TS-2 oil and water cooled turbochargers
  • V-Band, various T3 Flange and T4 Flange options
  • Reverse rotation (Selected Sizes)
  • Various A/R options
  • Internal and external wastegated options available
  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminium compressor covers
  • CFD driven designed housings for optimal A/R’s and flow
  • T14 Inconel turbine wheel for extreme EGT's
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing
  • Compressor Inlet: 4? / 101.6mm
  • Compressor Inducer: 58mm
  • Turbine Inlet: T3
  • Turbine Exducer: 62mm
  • Turbine AR: 0.63
  • Turbine Outlet: V-Band (3.00?)
  • Weight: 6.06kg / 13.3lbs
  • Horsepower Rating: 600-750HP
  • 1 x Turbosmart Performance Turbocharger
  • 1 x Weld Flanges (Turbine outlet)
  • 1 x V-Band Clamps (Turbine outlet)
  • 1 x Oil drain gasket
  • Universal Part
