Description

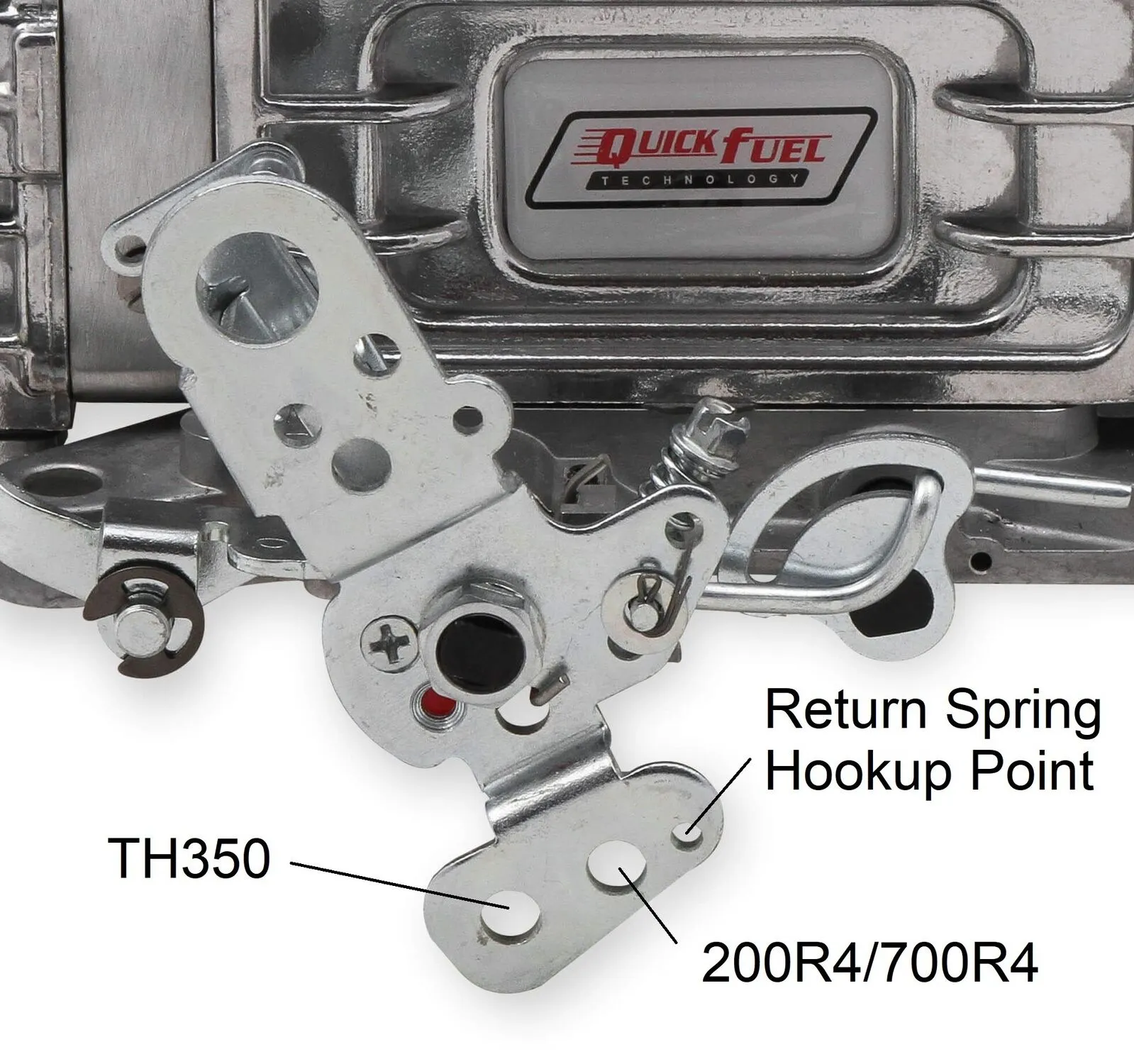

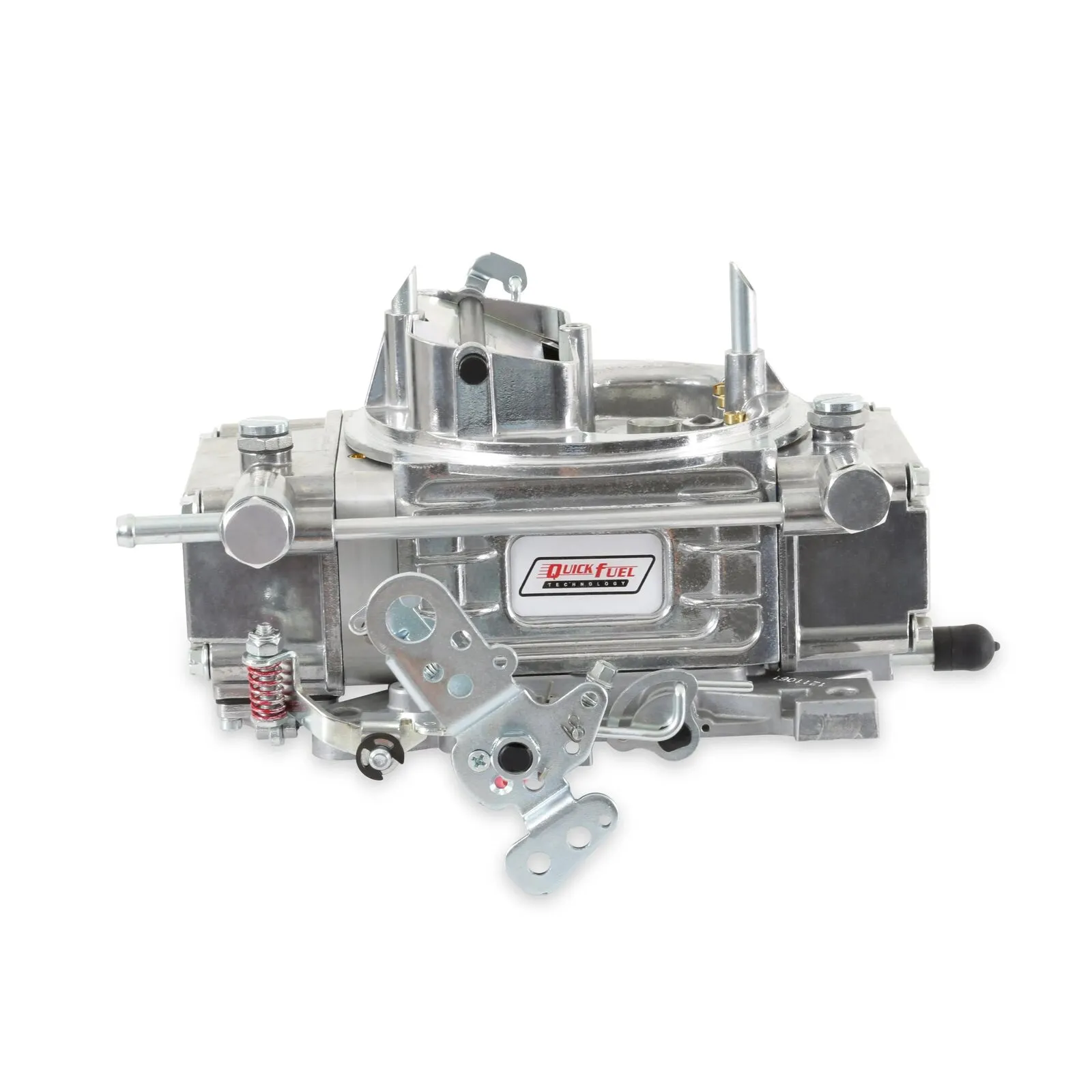

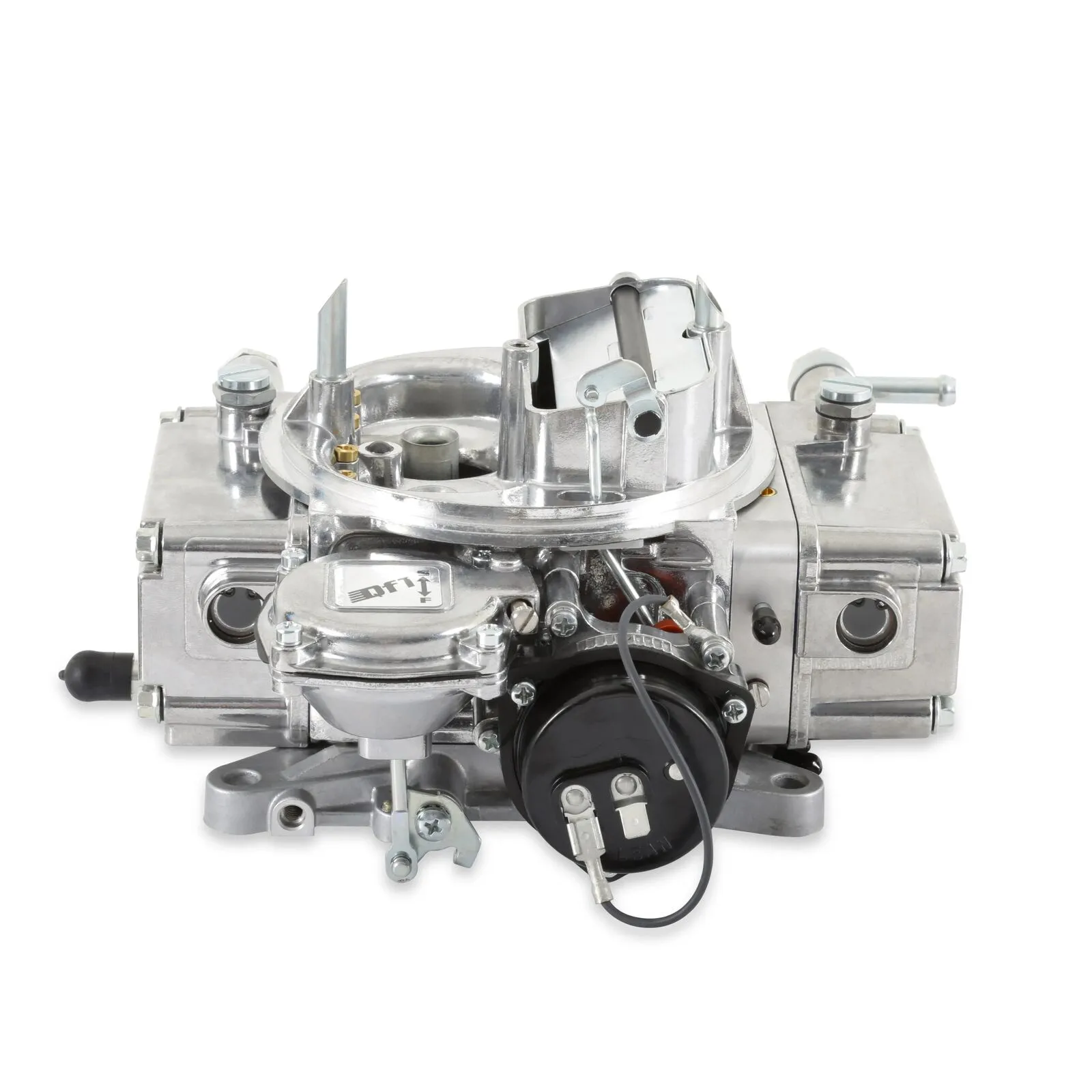

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

Features

  • • Vacuum Secondaries
  • • Electric Choke
  • • Single Metering Block
  • • Secondary Metering Plate
  • • Cast Aluminum Throttle Body
  • • Single Sight Glass Windows
  • • Changeable Air Bleeds
  • • Adjustable Needles & Seats
  • • Notched Secondary Floats w/Jet Extensions

Specifications

Barrel Quantity4
Barrels4
Billet ColourDiecast-No Billet
BoosterDown Leg
BrandQuick Fuel
Carburetor UseStreet
CFM600
ChokeElectric
Choke TypeElectric
Circuit2
ConditionNew
Cubic Feet Per Minute Rating600
Emission Code3
FinishShiny
Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed31
Idle Air Bleed Size63:78
Linkage AttachedYes
Marine UseNo
MaterialAluminum
ModelSlayer Series
Primary Main Jet66
Primary Power Valve65
Primary Pump Nozzle Size31
Product TypeCarburetor
Sale CategoryCarburetors and Components
SecondariesVacuum
Secondary Main Jet74
Supercharged ApplicationNo
Throttle Bore1-9/16 inch
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. It's designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.

Features

  • • Vacuum Secondaries
  • • Electric Choke
  • • Single Metering Block
  • • Secondary Metering Plate
  • • Cast Aluminum Throttle Body
  • • Single Sight Glass Windows
  • • Changeable Air Bleeds
  • • Adjustable Needles & Seats
  • • Notched Secondary Floats w/Jet Extensions
Barrel Quantity4
Barrels4
Billet ColourDiecast-No Billet
BoosterDown Leg
BrandQuick Fuel
Carburetor UseStreet
CFM600
ChokeElectric
Choke TypeElectric
Circuit2
ConditionNew
Cubic Feet Per Minute Rating600
Emission Code3
FinishShiny
Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed31
Idle Air Bleed Size63:78
Linkage AttachedYes
Marine UseNo
MaterialAluminum
ModelSlayer Series
Primary Main Jet66
Primary Power Valve65
Primary Pump Nozzle Size31
Product TypeCarburetor
Sale CategoryCarburetors and Components
SecondariesVacuum
Secondary Main Jet74
Supercharged ApplicationNo
Throttle Bore1-9/16 inch
WarrantyLimited 90 Day
  • Universal Part
