Description

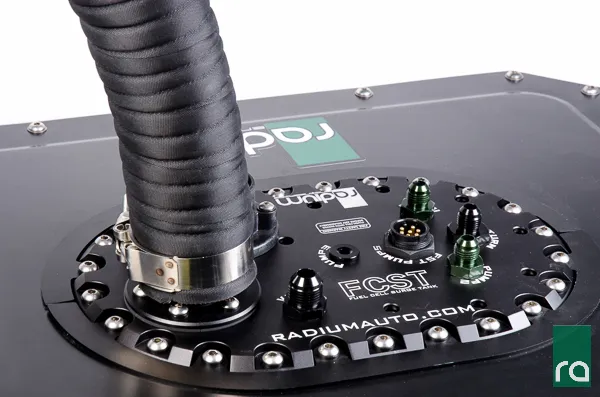

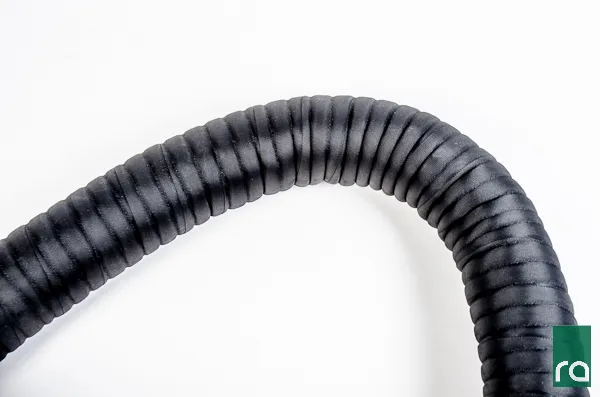

This wire reinforced hose is designed specifically for fuel filling. Internal hose diameters are available in 1.5" and 2.25" making it ideal for many applications including the options here. The hose is used to connect to a body-mounted filler.

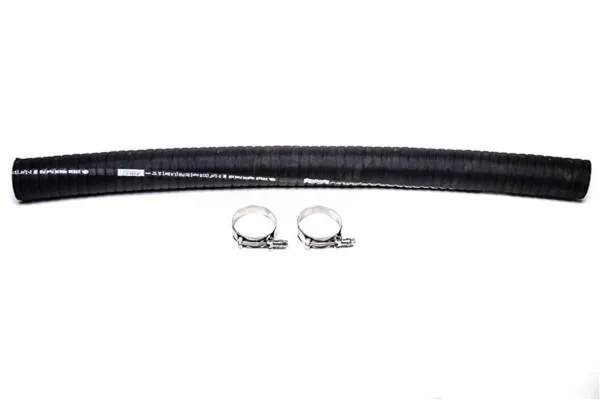

304 Stainless Steel T-Bolt clamps are included that features a protective smooth inside and permits a 360 degree seal.

Specifications

  • Inside Diameter: 1.5" (38mm) ID
  • Wall Thickness: 0.176" (4.47mm)
  • Length: 3 feet (914mm)
  • Working Pressure: 20-psi maximum
  • Burst Pressure: 90-psi mimimum
  • Bend Radius: 5" minimum
  • Tube Construction: Nitrile
  • Reinforcement: Synthetic Fabric
  • Flex: Two Embedded Helical Wires
  • Cover: Neoprene Coated Fabric
  • Temperature Range: -40F to 212F
  • Standards: SAE 30R5

Compatibility

  • Universal Part

This wire reinforced hose is designed specifically for fuel filling. Internal hose diameters are available in 1.5" and 2.25" making it ideal for many applications including the options here. The hose is used to connect to a body-mounted filler.

304 Stainless Steel T-Bolt clamps are included that features a protective smooth inside and permits a 360 degree seal.

  • Inside Diameter: 1.5" (38mm) ID
  • Wall Thickness: 0.176" (4.47mm)
  • Length: 3 feet (914mm)
  • Working Pressure: 20-psi maximum
  • Burst Pressure: 90-psi mimimum
  • Bend Radius: 5" minimum
  • Tube Construction: Nitrile
  • Reinforcement: Synthetic Fabric
  • Flex: Two Embedded Helical Wires
  • Cover: Neoprene Coated Fabric
  • Temperature Range: -40F to 212F
  • Standards: SAE 30R5
  • Universal Part
