Description

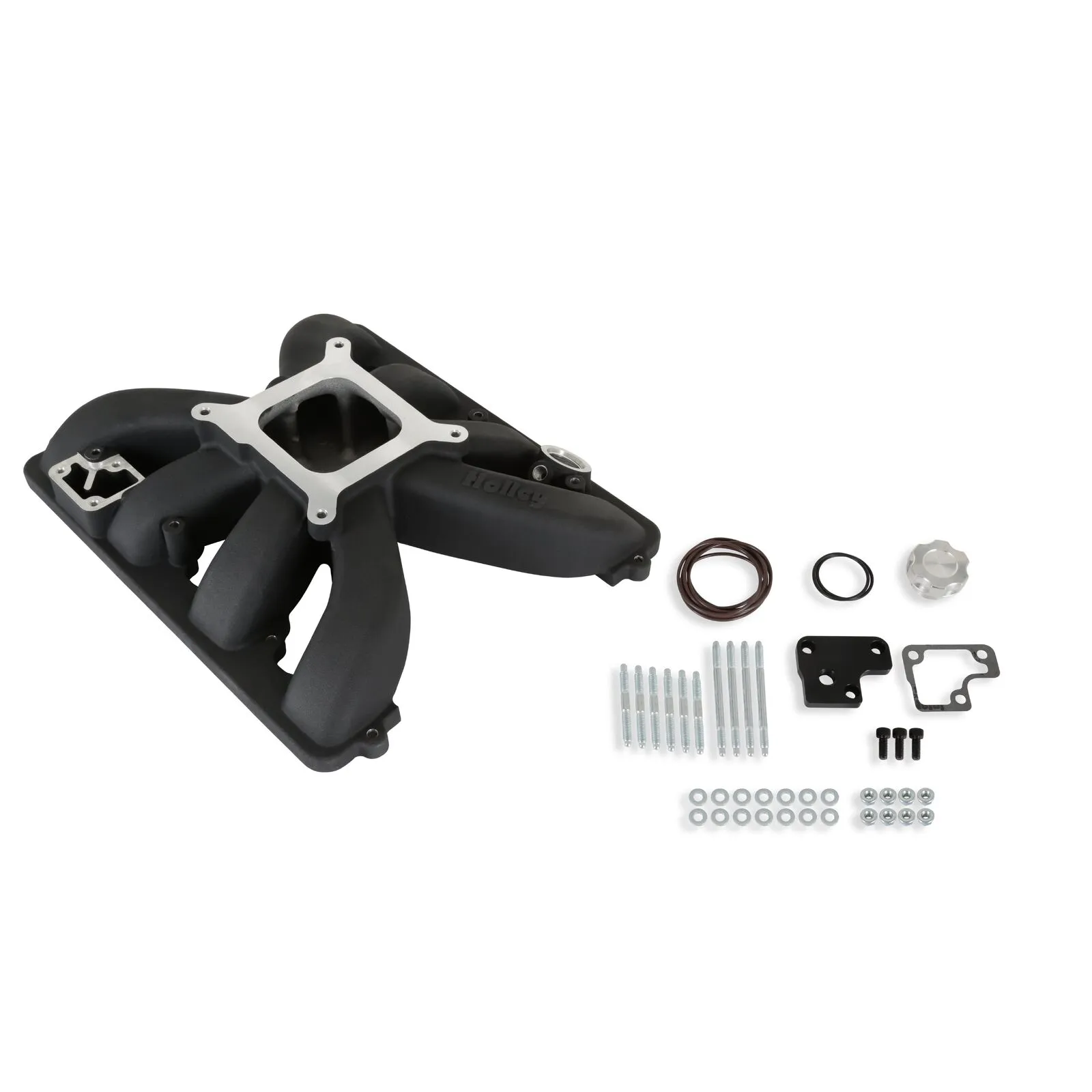

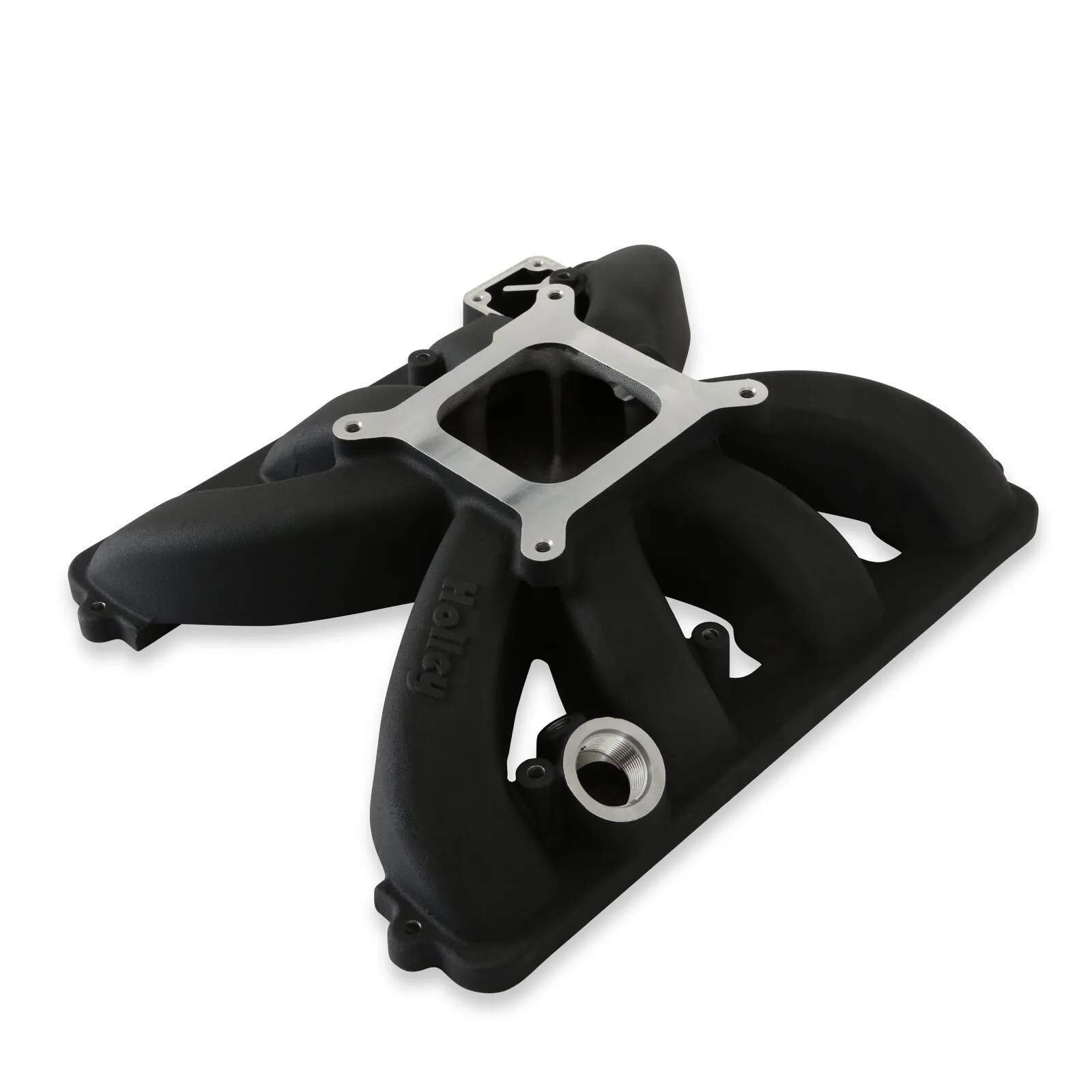

These new single-plane intake manifold kits are designed for 2009-Current 5.7-liter, 2005-2010 6.1-liter, and 20011-Current 6.4-liter Chrysler Gen III Hemi engines. They provide maximum hood clearance combined with plenum and runner geometry that provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The isolated design of the air/fuel passages helps to increase charge air density and performance.

300-930 and 300-930BK are designed for 4150 type throttle valves. Included are billet fuel rails along with mounting brackets for either Bosch EV-1 type fuel injectors or most Gen III Hemi OEM injectors.

300-931 and 300-931BK have a 4150 flange to accept square bore carburetors or a Sniper EFI. They are machined from castings without the bosses for fuel injectors for a cleaner look.

Features

  • Minimum carb flange height for maximum clearance to hood

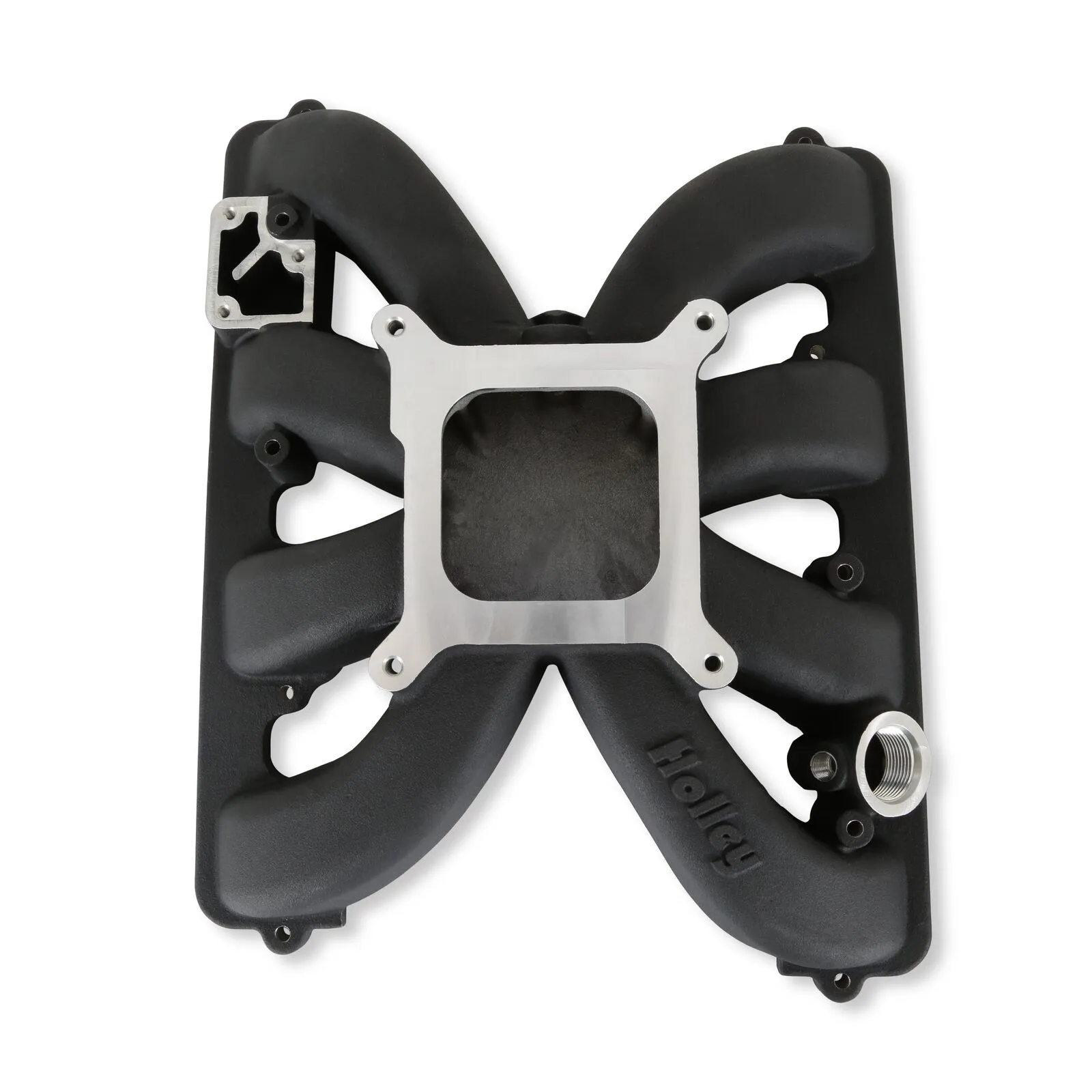

  • 4150 type throttle/carb flange
  • Cast aluminum construction. Great for turbocharger, centrifugal blower or NOS power adders
  • Billet fuel rails included with 300-930, 300-930BK
  • Unique casting for 300-931, 300-931BK without injector bungs for clean appearance
  • Height to throttle valve flange in front is 3.31-inch, rear is 4.25-inch

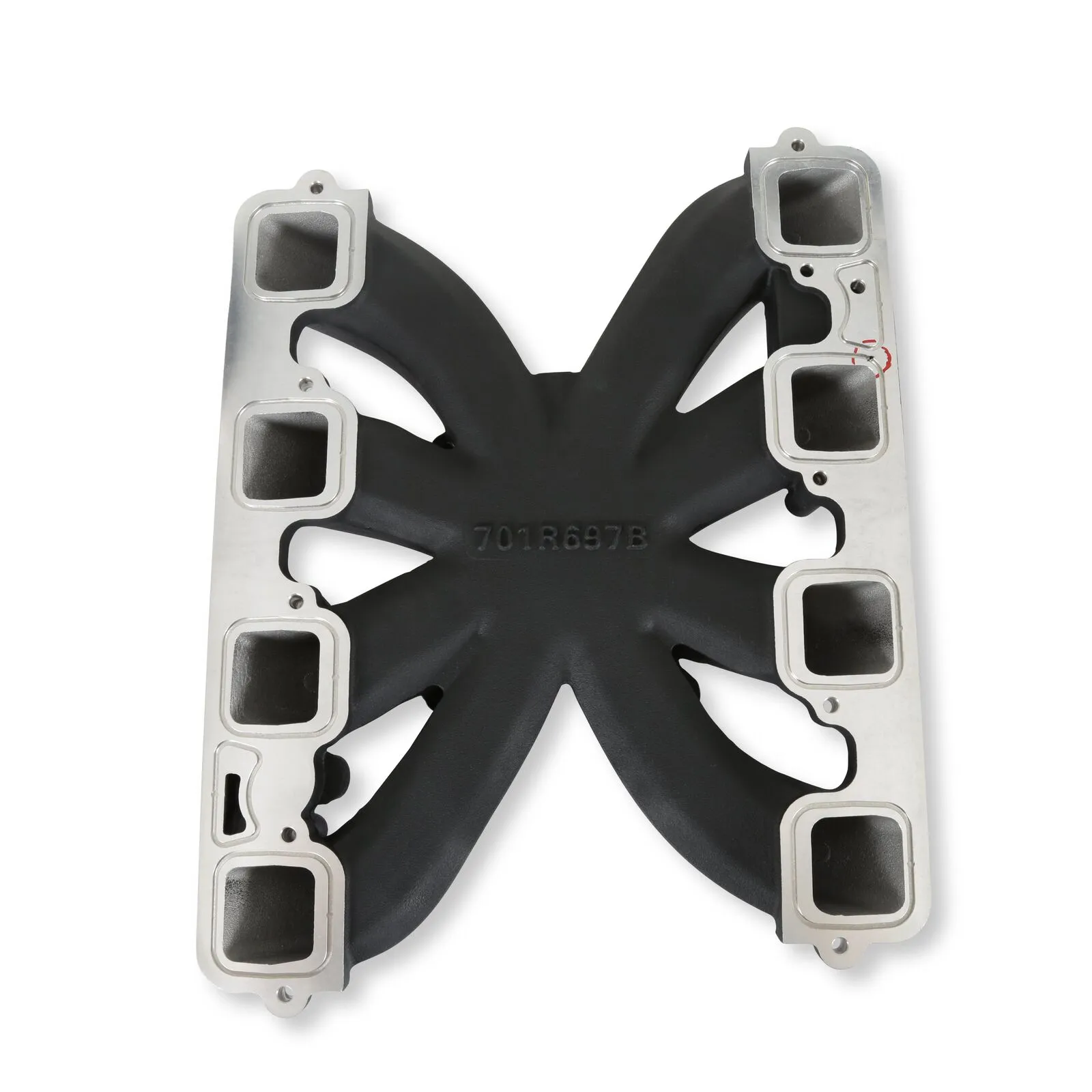

  • Port size: 1.72-inches tall, 1.75-inches wide

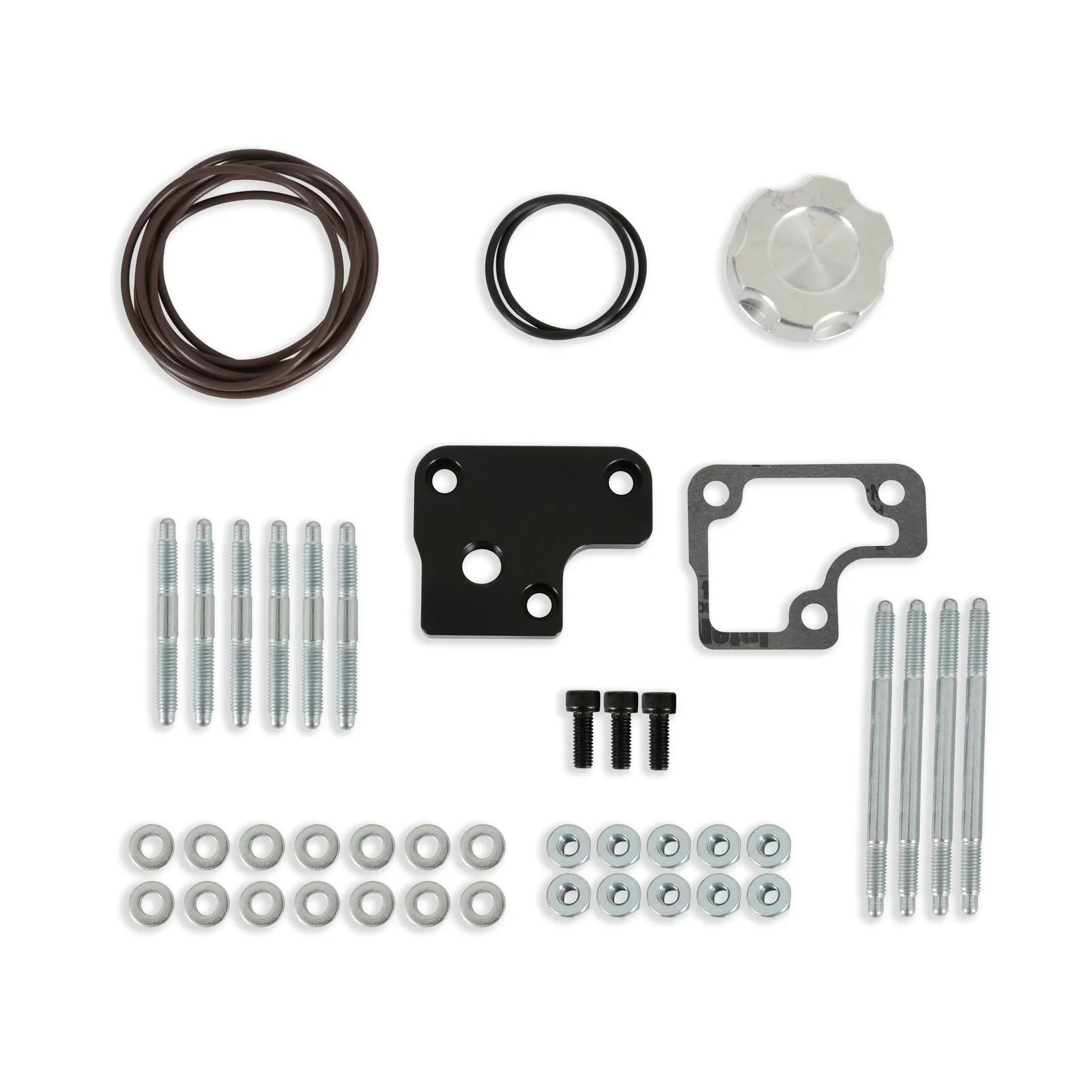

  • Billet aluminum oil fill cap included
  • Designed for use with either Bosch EV1 or Gen III Hemi OEM fuel injectors
  • O-ring seals around ports

Specifications

Basic Operating RPM Range2500-7500
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code3
EngineGEN 3 HEMI
FinishBlack
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band2500-7500
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo

Compatibility

  • Universal Part

These new single-plane intake manifold kits are designed for 2009-Current 5.7-liter, 2005-2010 6.1-liter, and 20011-Current 6.4-liter Chrysler Gen III Hemi engines. They provide maximum hood clearance combined with plenum and runner geometry that provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The isolated design of the air/fuel passages helps to increase charge air density and performance.

300-930 and 300-930BK are designed for 4150 type throttle valves. Included are billet fuel rails along with mounting brackets for either Bosch EV-1 type fuel injectors or most Gen III Hemi OEM injectors.

300-931 and 300-931BK have a 4150 flange to accept square bore carburetors or a Sniper EFI. They are machined from castings without the bosses for fuel injectors for a cleaner look.

Features

  • Minimum carb flange height for maximum clearance to hood
  • 4150 type throttle/carb flange
  • Cast aluminum construction. Great for turbocharger, centrifugal blower or NOS power adders
  • Billet fuel rails included with 300-930, 300-930BK
  • Unique casting for 300-931, 300-931BK without injector bungs for clean appearance
  • Height to throttle valve flange in front is 3.31-inch, rear is 4.25-inch
  • Port size: 1.72-inches tall, 1.75-inches wide
  • Billet aluminum oil fill cap included
  • Designed for use with either Bosch EV1 or Gen III Hemi OEM fuel injectors
  • O-ring seals around ports
Basic Operating RPM Range2500-7500
BrandHolley
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourBlack
ConstructionCast
EGR PortNo
Emission Code3
EngineGEN 3 HEMI
FinishBlack
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishBlack
Product TypeIntake Manifold
Removable RunnersNo
RPM Power Band2500-7500
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
  • Universal Part
