Description

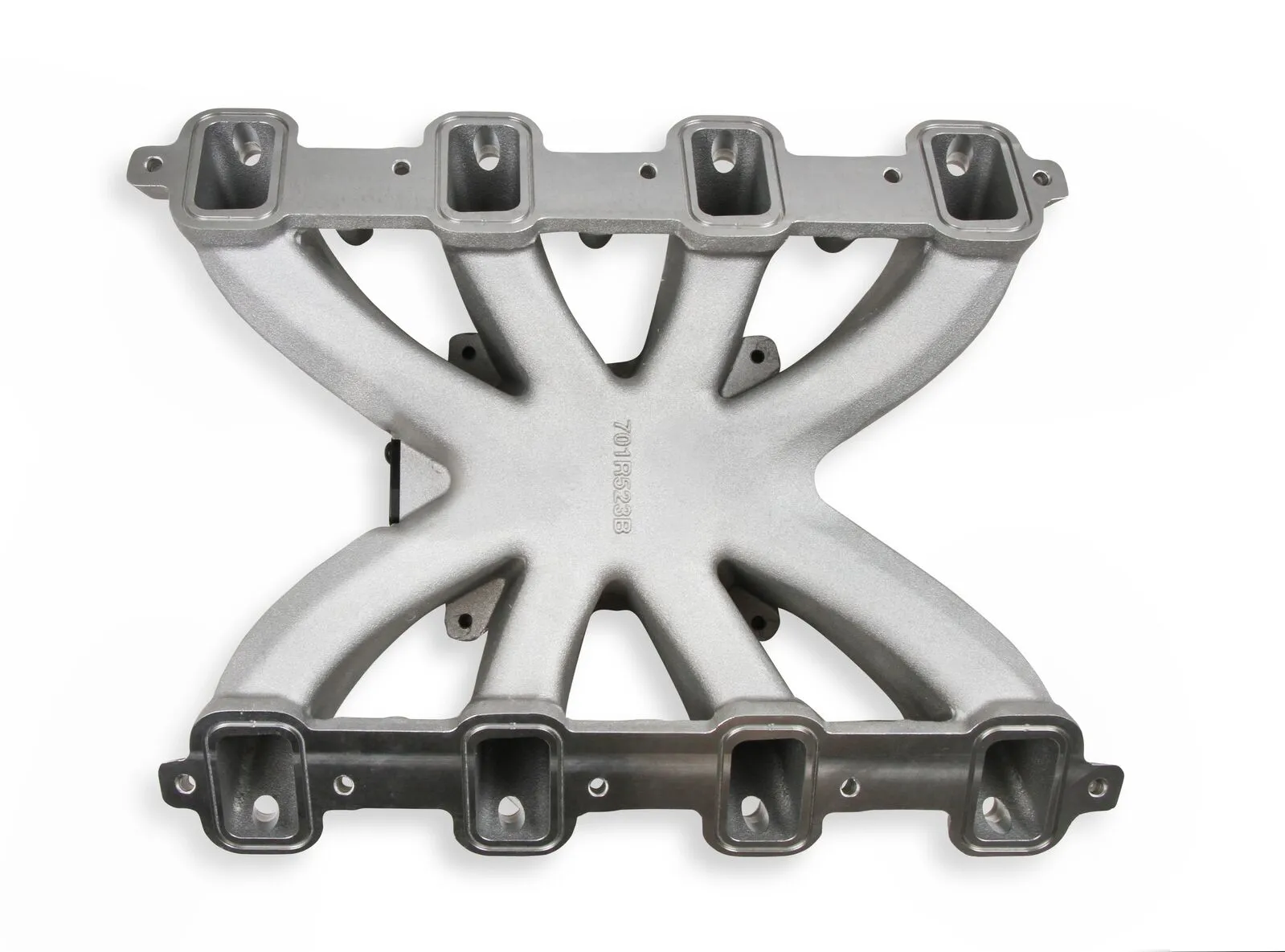

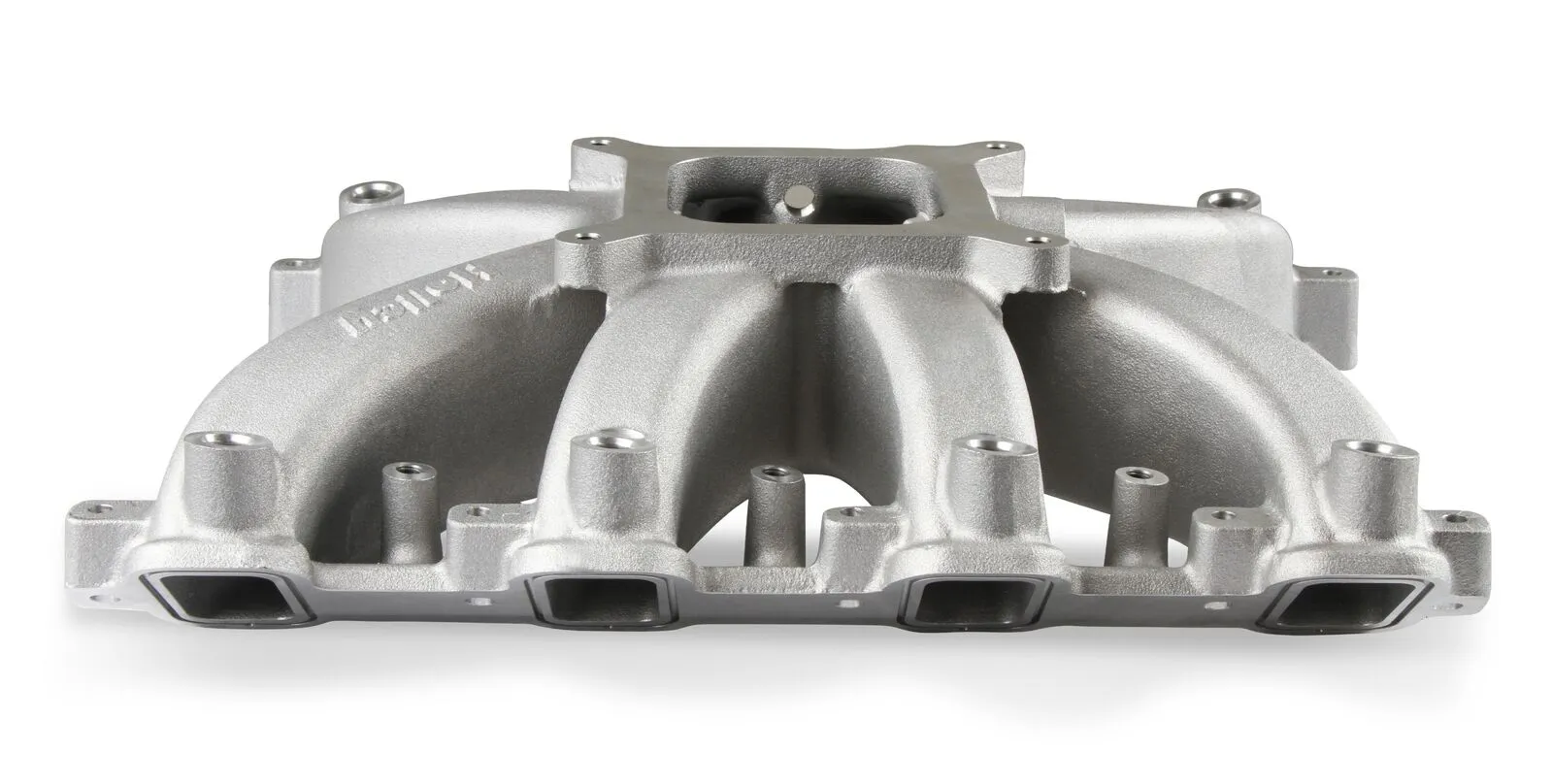

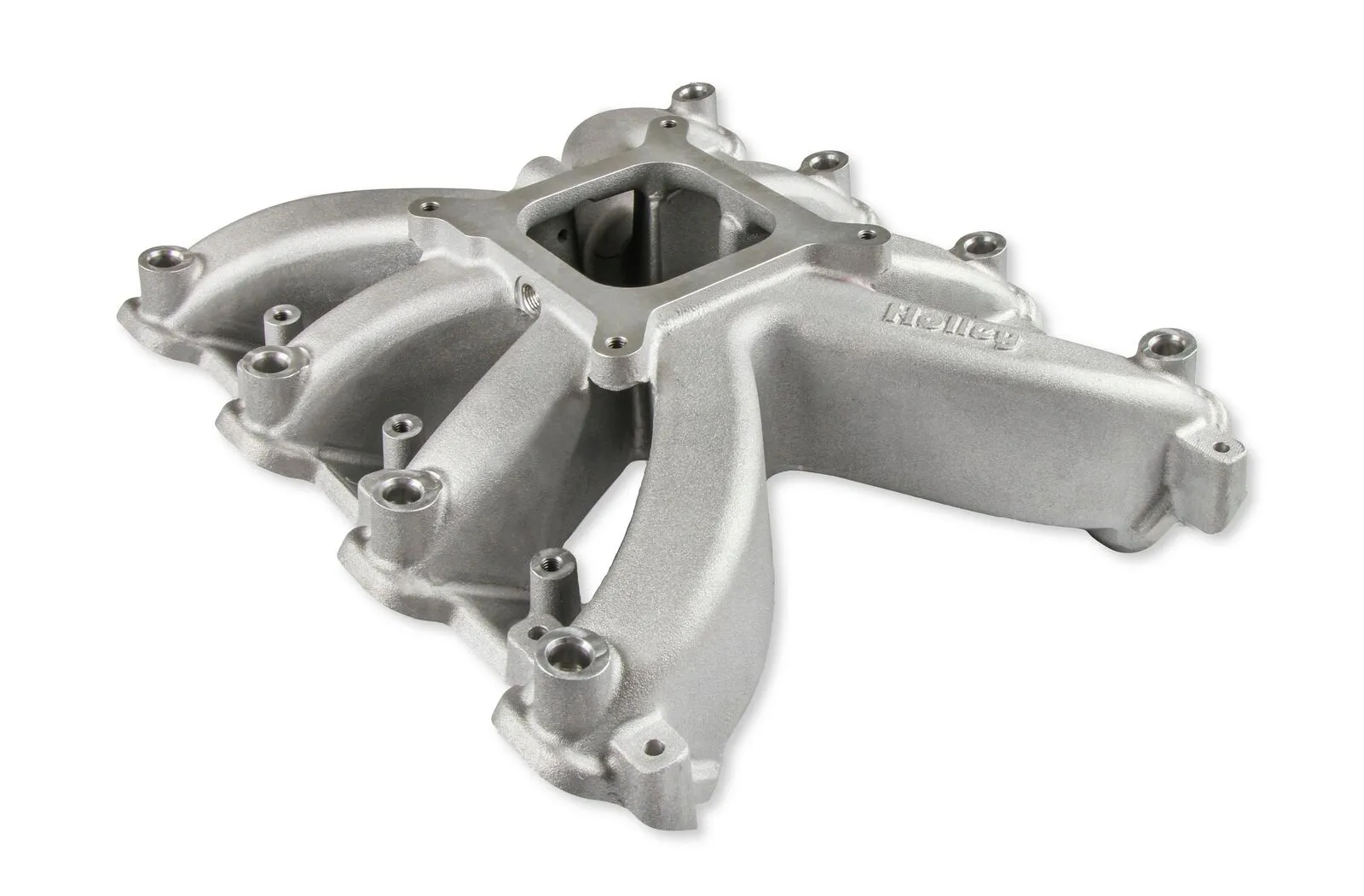

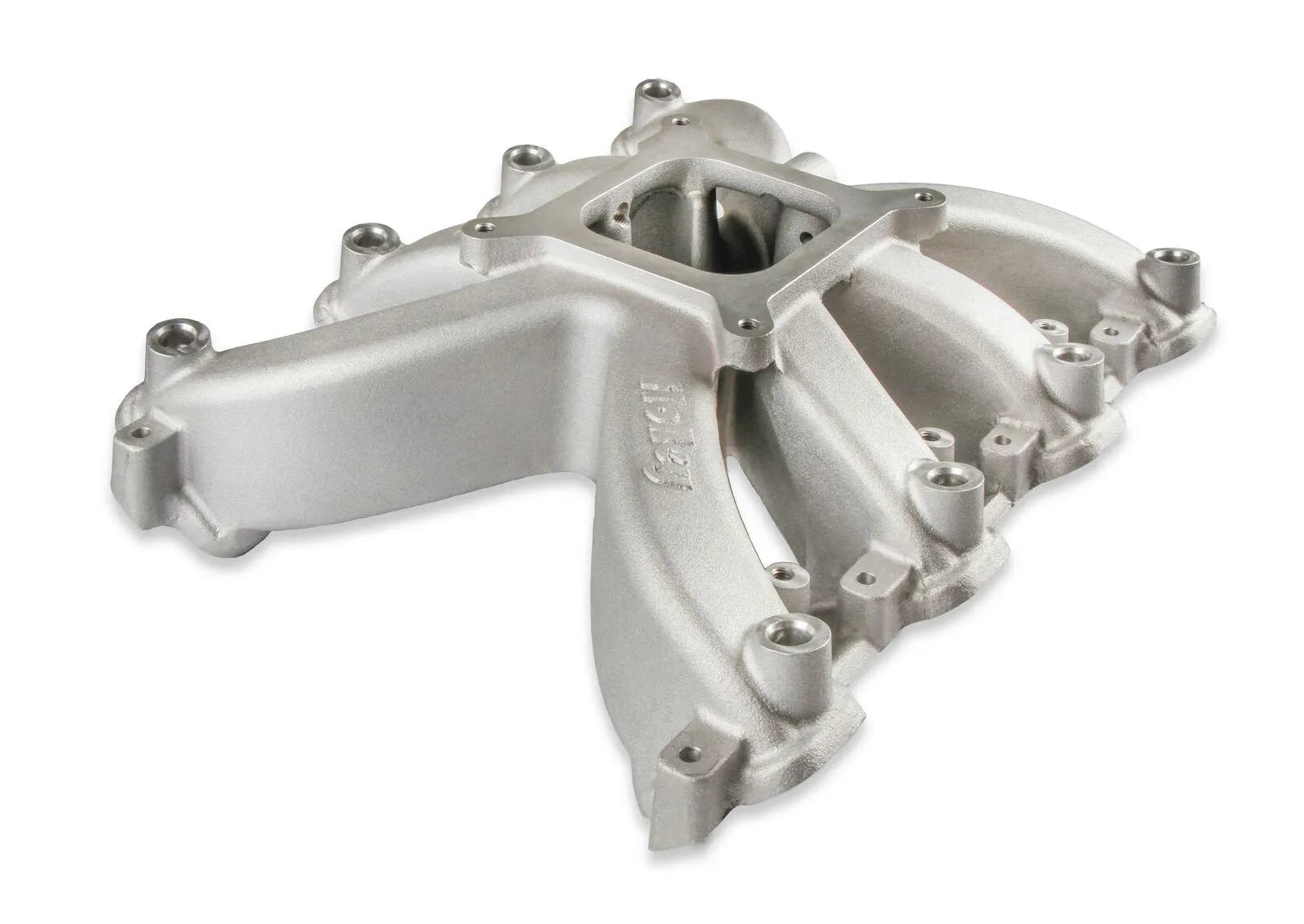

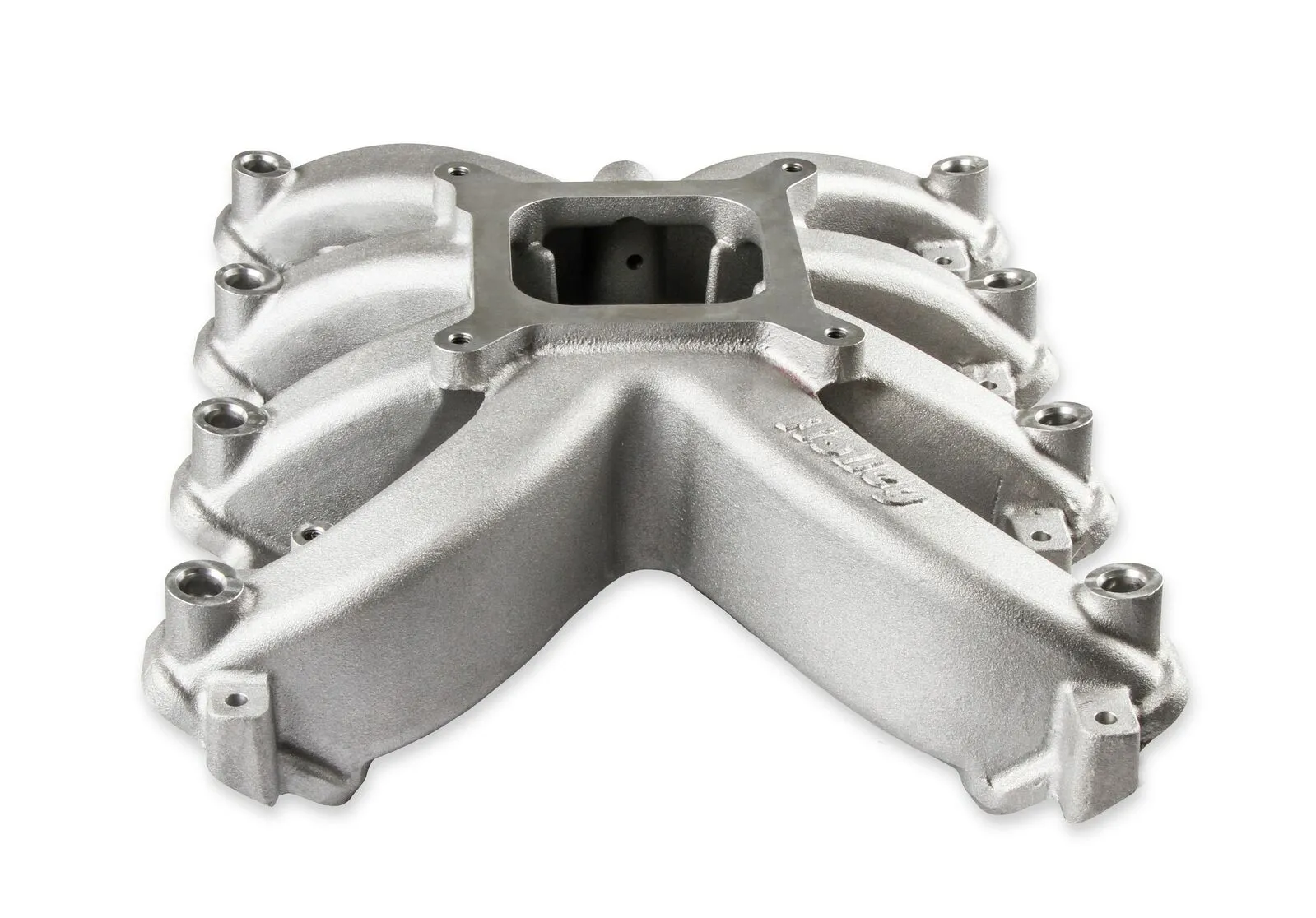

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads.

Designed with a 4150 Square bore flange. Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM

Minimum carb flange height - fit in vehicles with minimum hood modifications. Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

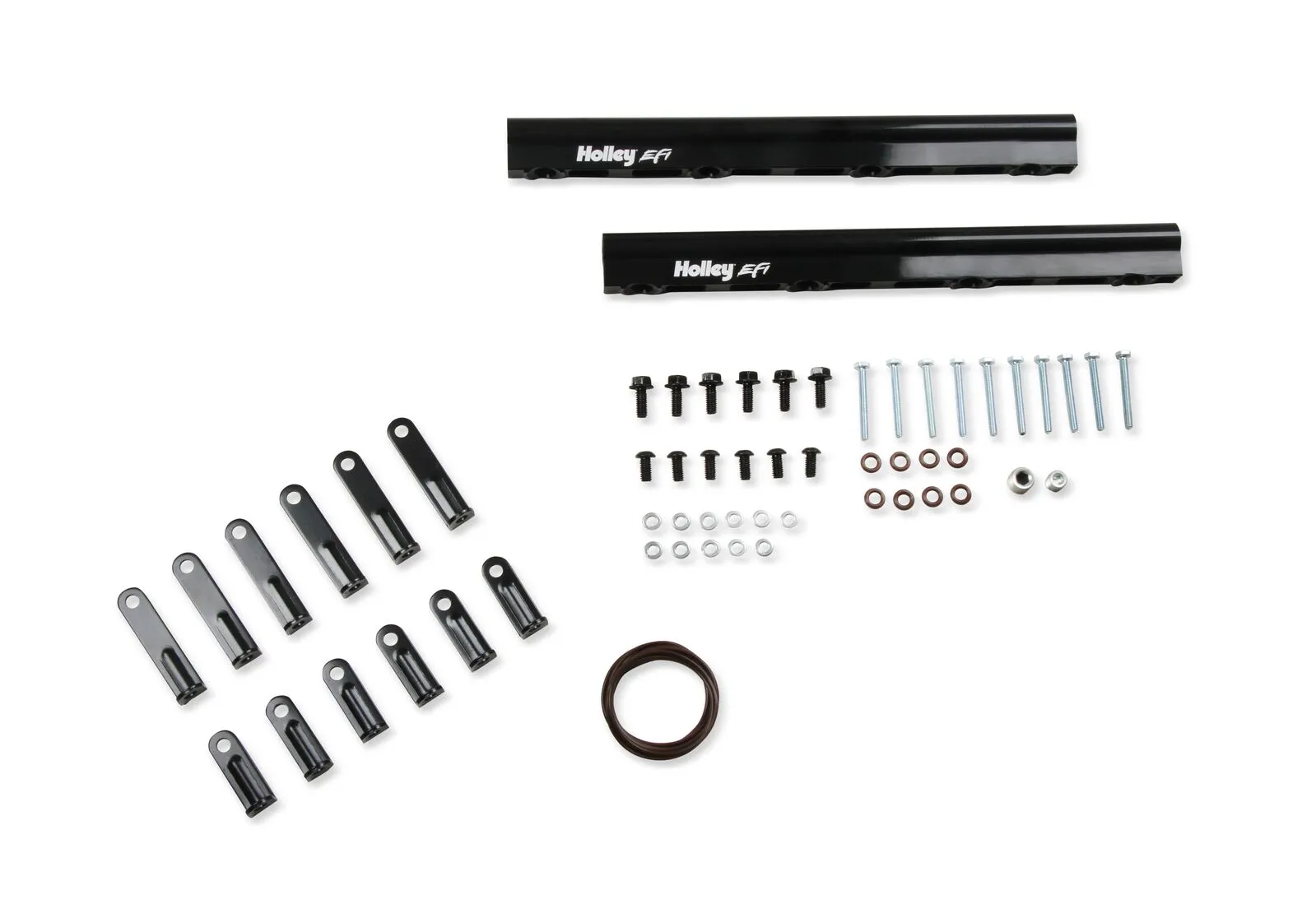

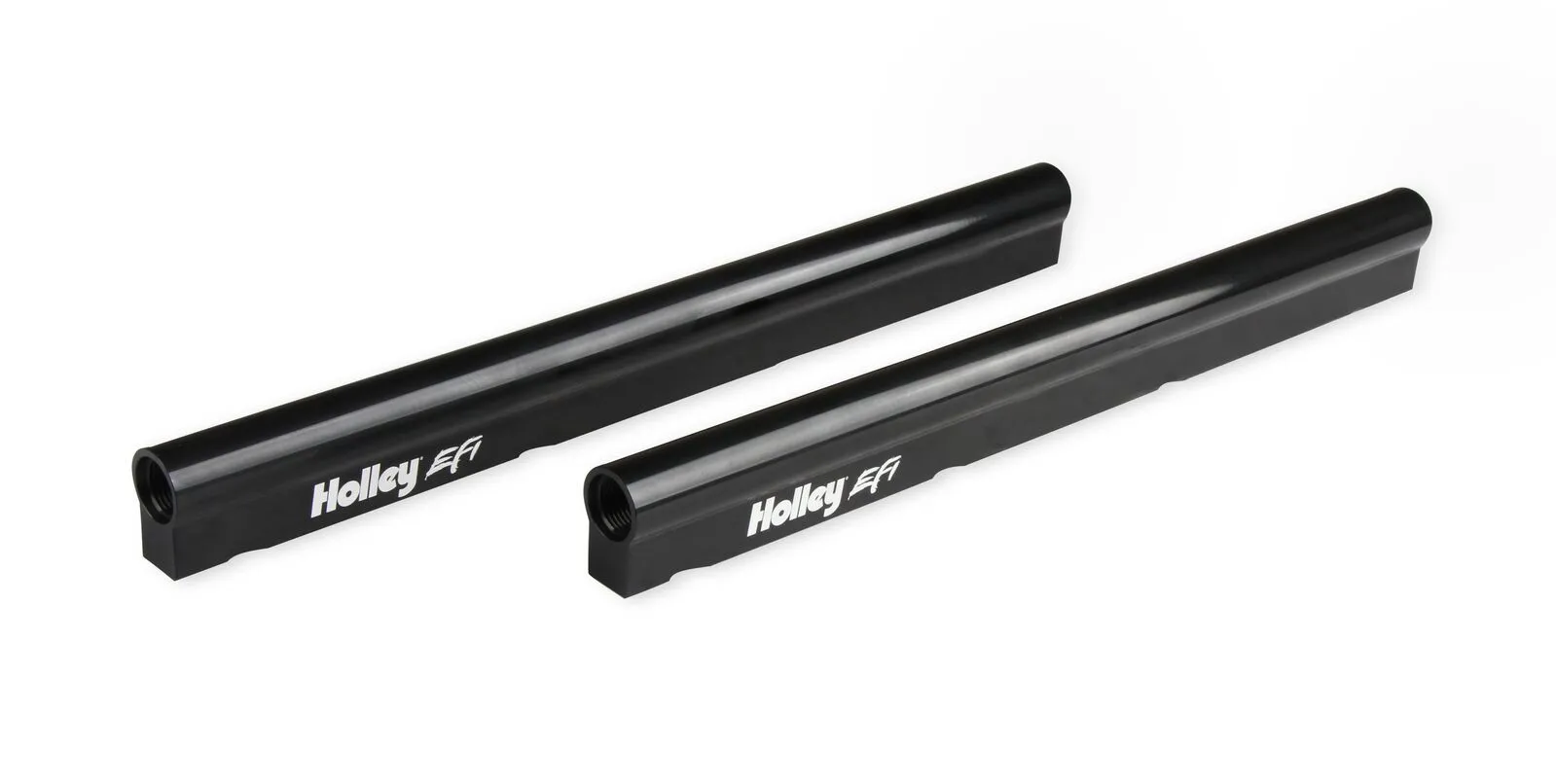

The manifold kit includes the fuel rails, mounting hardware, and o-ring cylinder head mounting flange gaskets.

Features

  • 2500-7000 RPM power band
  • 4150 Square bore flange
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fit in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications

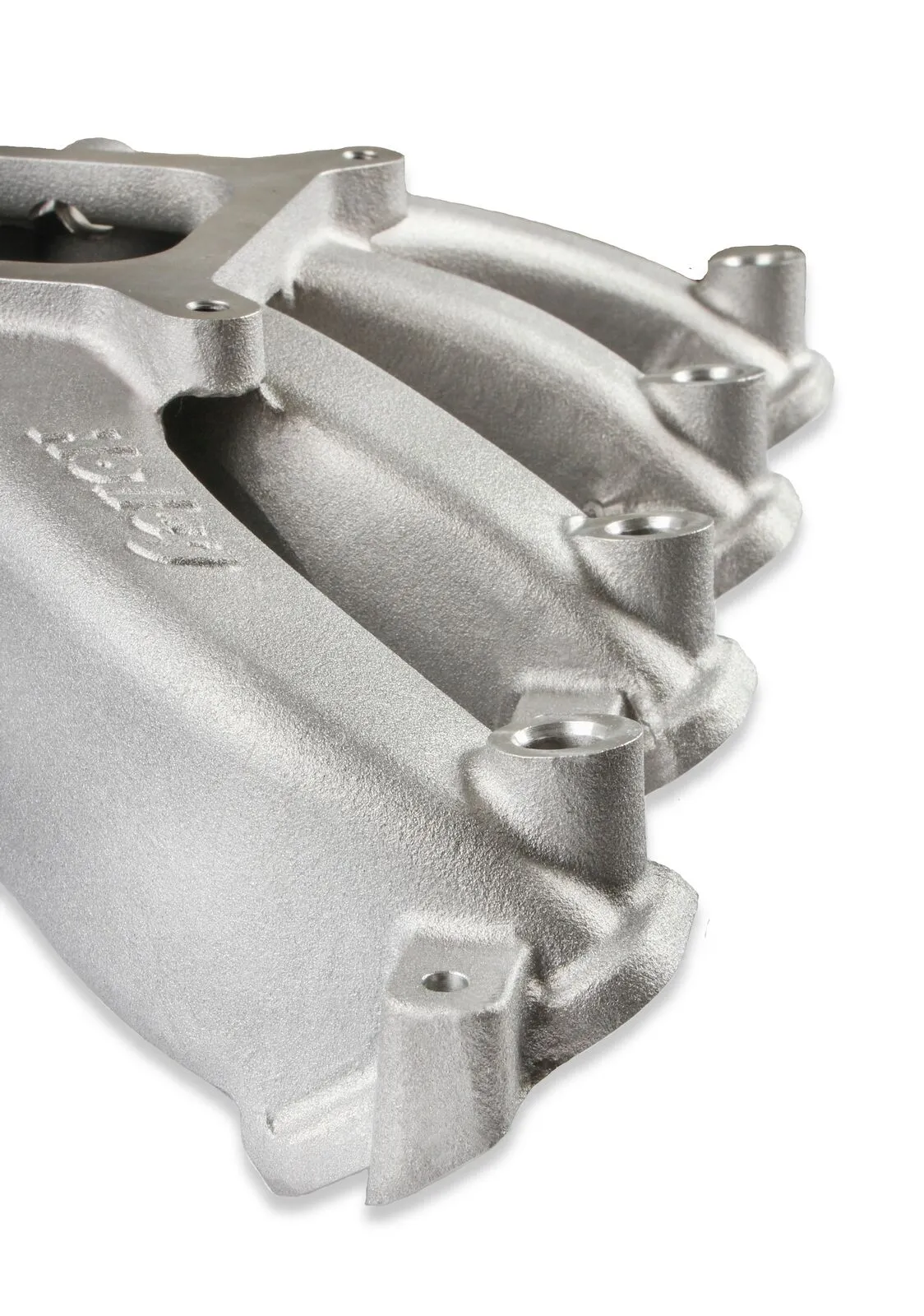

  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.

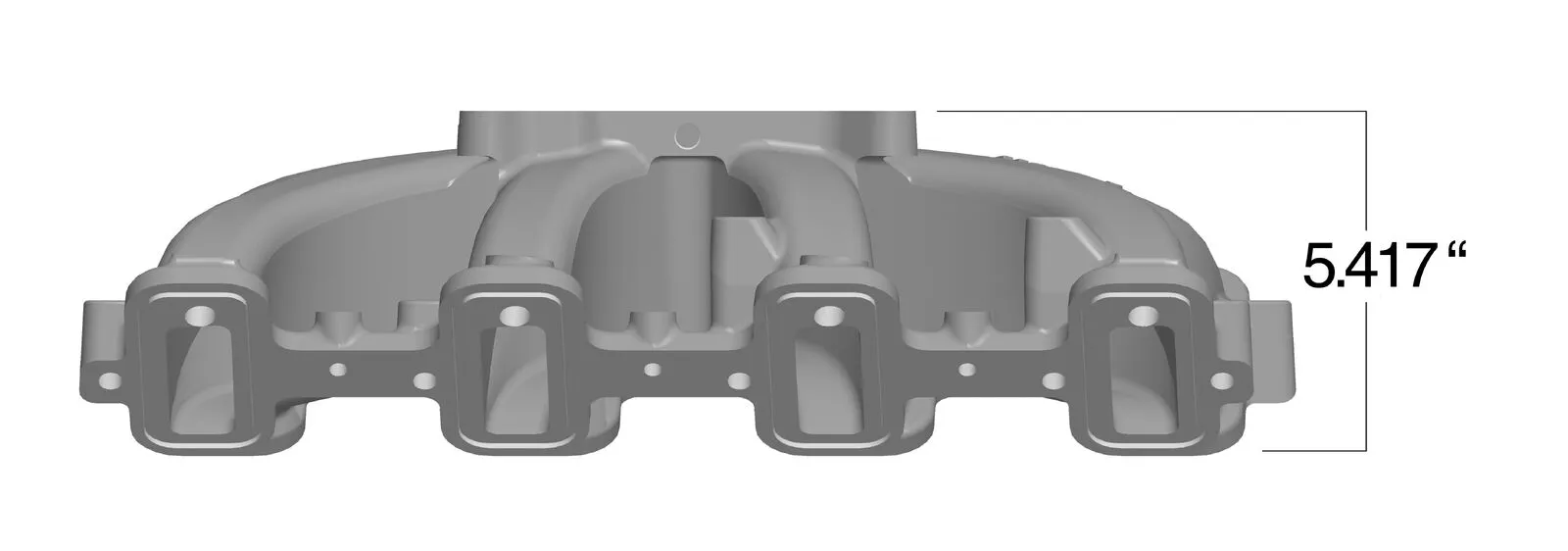

  • Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange

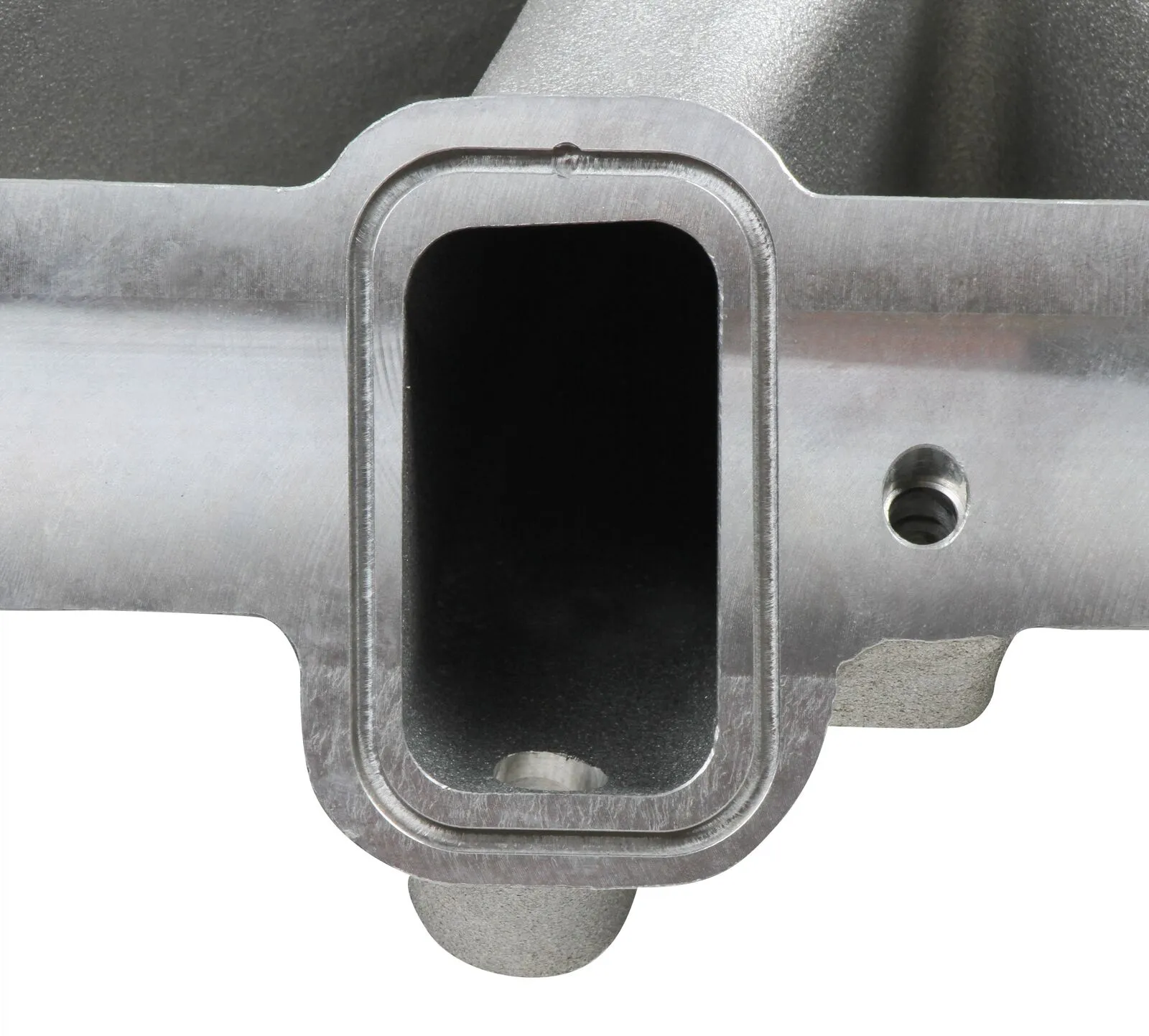

  • Port size - 2.33" height x 1.27" wide
  • Includes FKM o-ring intake to cylinder head gaskets

Specifications

Basic Operating RPM Range2500-7000
BrandHolley
Carburetor FlangeSquare/4150
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourSilver
ConstructionCast
EGR PortNo
Emission Code3
EngineGM LS7
FinishSilver
Flange Style4150 Square Bore
Front Height5.417 inch
Front Maximum Height5.417
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeEFI
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeSingle Plane
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold
Rear Height5.417 inch
Rear Maximum Height5.417
Recommended UseForced Induction
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads.

Designed with a 4150 Square bore flange. Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM

Minimum carb flange height - fit in vehicles with minimum hood modifications. Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

The manifold kit includes the fuel rails, mounting hardware, and o-ring cylinder head mounting flange gaskets.

Features

  • 2500-7000 RPM power band
  • 4150 Square bore flange
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fit in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.
  • Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
  • Port size - 2.33" height x 1.27" wide
  • Includes FKM o-ring intake to cylinder head gaskets
Basic Operating RPM Range2500-7000
BrandHolley
Carburetor FlangeSquare/4150
Carburetor Studs IncludedNo
Category FilterIntake Manifolds
Clearance CategoryIntake Manifolds
ColourSilver
ConstructionCast
EGR PortNo
Emission Code3
EngineGM LS7
FinishSilver
Flange Style4150 Square Bore
Front Height5.417 inch
Front Maximum Height5.417
Fuel Injectors IncludedNo
Fuel Rail(s) IncludedNo
Fuel System TypeEFI
Gasket Or Seal IncludedNo
Grade TypePerformance
Intake Port Gasket(s) IncludedNo
Manifold TypeSingle Plane
MaterialAluminum
Nitrous Bung(s) IncludedNo
Plenum FinishNatural
Product TypeIntake Manifold
Rear Height5.417 inch
Rear Maximum Height5.417
Recommended UseForced Induction
Removable RunnersNo
RPM Power Band2500-7000 RPM
Sale CategoryAir and Fuel Delivery
Single Or Dual Plane TypeSingle Plane
Throttle Body IncludedNo
WarrantyLimited 90 Day
  • Universal Part
